Non-Sparking Tools for Industrial Safety: A Complete Guide to Materials, Standards, Applications and Selection
- Jan 30
- 18 min read
In any industrial environment where flammable gases, vapours, liquids, or combustible dusts are present, the choice of hand tool is a safety-critical decision.
Conventional steel tools generate high-energy sparks on mechanical impact — iron oxide particles reaching 1,000°C or higher, capable of igniting any flammable atmosphere above its auto-ignition threshold.
Non-sparking tools, manufactured from selected copper alloys, prevent this ignition risk by generating only cold, low-energy oxide particles that cannot initiate combustion in the surrounding atmosphere.
Non-sparking tools are not a single material or a single product category. They are a family of safety hand tools spanning wrenches, hammers, spanners, sockets, chisels, crowbars, bung wrenches, and specialist tools — manufactured from copper alloys that are fundamentally different in their mechanical behaviour from steel.
This guide covers every dimension of non-sparking tool specification: the science behind how they work, the three alloy families available, the nine industrial sectors where they are mandatory or operationally specified, the safety standards governing their use across India, Europe, and North America, the complete product range, correct usage, maintenance, and procurement guidance.
How Steel Tools Create Ignition Risk in Hazardous Environments
Steel tools are composed primarily of iron, with high hardness and relatively low thermal conductivity. When a steel tool strikes a hard surface — a valve body, a flange, a concrete floor — significant localised energy is generated at the point of contact. This energy produces frictional heat and oxidising metal particles. These iron oxide particles, heated to temperatures of 800°C to 1,000°C, remain incandescent for a measurable period after separation from the tool surface. In an atmosphere containing a flammable gas, vapour, or dust at or above its auto-ignition temperature, these particles are sufficient to initiate combustion.
The auto-ignition temperatures of common industrial flammables illustrate why this risk is not theoretical:
Substance | Auto-Ignition Temperature | Common Locations |
Petrol (Gasoline) | 246°C | Fuel depots, terminals, vehicle maintenance |
LPG (Propane) | 470°C | Bottling plants, CGD networks, storage |
Hydrogen | 500°C | Refineries, steel plants, power generation |
Methane (Natural Gas) | 537°C | CGD networks, petrochemicals, mining |
Coal Dust | 400–500°C | Mining, power generation, handling |
Acetone (Solvent) | 465°C | Chemical and pharmaceutical plants |
Toluene (Paint Solvent) | 480°C | Paint, coatings, and ink manufacturing |
A steel tool generating a 1,000°C spark in an atmosphere where petrol vapour is present above 246°C — a condition that exists routinely in fuel depot operations — creates a direct ignition source.
Documented industrial fires caused by this exact mechanism have been recorded across oil depot, LPG bottling, and chemical plant operations globally. For a compilation of real-world incidents, see 13 Documented Fire & Explosion Events: Non-Sparking Tools Compliance Failures
Spark formation occurs through two dominant mechanisms. Impact ignition occurs when a tool strikes a hard surface, generating oxidising metal particles from the contact zone. Frictional heating occurs during sustained sliding or rotational contact, generating heat at the tool-surface interface. Both mechanisms are present in routine industrial maintenance operations — tightening flanges, breaking loose corroded fasteners, striking valve stems.
How Non-Sparking Tools Prevent Ignition
Non-sparking tools are manufactured from copper alloys rather than steel. The fundamental difference lies in how these materials respond to mechanical impact and friction.
Copper alloys exhibit controlled plastic deformation under impact — the material absorbs and distributes the mechanical energy through localised deformation rather than brittle fracture. This deformation behaviour, combined with higher thermal conductivity than steel, means that heat generated at the contact zone is rapidly dissipated through the alloy matrix rather than remaining concentrated at the surface.
The particles separated from the tool surface during impact are oxide particles of the copper alloy — cold or low-temperature particles that do not achieve the ignition temperature required to initiate combustion in flammable atmospheres.
This does not mean non-sparking tools generate no particles on impact — they do. The critical difference is the energy level and temperature of those particles. Where steel generates incandescent iron oxide particles at 800–1,000°C, copper alloy tools generate cold, dark oxide particles well below the auto-ignition temperatures of industrial flammables.
For the detailed technical explanation of the fire triangle relationship and how copper alloys interrupt the ignition chain, see Non-Sparking Tools and the Fire Triangle: The Science Behind Spark Prevention
Non-Sparking Tool Materials: The Three Alloy Families
Three copper alloy families are used for certified non-sparking hand tools in industrial service. Each delivers a different balance of mechanical performance, spark suppression, corrosion resistance, and occupational health profile. The correct material selection depends on the application load, the operating environment, and the regulatory framework governing the site.
An important point before comparing materials: not all copper alloys qualify as certified non-sparking materials. Brass, Monel, pure copper, and standard bronze are sometimes described as non-sparking — but these materials do not provide the mechanical strength, controlled hardness, or deformation behaviour required to pass the IS 4595 spark test.
Tools for hazardous area use must be sourced from manufacturers with documented IS 4595 certification. Using uncertified tools marketed as non-sparking creates a compliance liability and a safety risk.
1. Copper Titanium — QTi (High Performance, Beryllium-Free)
Copper titanium is the highest-performance beryllium-free non-sparking tool material available commercially. The alloy was developed and patented by a premier Indian defence research laboratory specifically to address the need for a material that matched beryllium copper in mechanical performance without its carcinogenic occupational health risk. Pahwa MetalTech manufactures this alloy and its non sparking tools commercially under the QTi brand name.
QTi Copper Titanium tools provide hardness of 27–32 HRC — comparable to beryllium copper — and yield strength and fatigue resistance suited to high-torque and repetitive load applications that aluminium bronze cannot reliably serve. QTi is the first non-sparking tool material certified to IS 6131 for torque performance equivalent to steel tools, enabling its specification in high-load applications without compromise on ignition safety.
QTi tools are simultaneously 100% non-magnetic and certified for 3T magnetic field environments — qualifying them as both non-sparking and non-magnetic tools for applications such as MRI maintenance, naval vessel operations with degaussing requirements, and precision instrument environments where magnetic tools cause interference.
QTi Copper Titanium non-sparking tools are IS 4595 certified, IS 6131 certified, and supplied to buyers across oil and gas, mining, chemical, LPG, defence, and general engineering sectors in more than 30 countries.
2. Aluminium Bronze — BronAL (General Industrial Use)
Aluminium bronze is the most widely used non-sparking tool material globally. The alloy provides reliable spark suppression for general industrial maintenance operations, combined with good corrosion resistance and cost efficiency compared to copper titanium.
BronAL Aluminium Bronze tools from Pahwa MetalTech serve light to medium-duty maintenance operations in refineries, chemical plants, fuel handling installations, marine environments, and general plant maintenance zones.
Aluminium bronze provides hardness of 18–25 HRC and mechanical strength suitable for standard wrench, hammer, and assembly operations at normal industrial loads. For high-load applications, repetitive torque operations, or situations where tool failure under load creates a secondary safety risk, the superior hardness and strength of copper titanium is the appropriate specification.
MYTH BUSTER: Aluminium bronze is not an aluminium alloy. It is a copper-based alloy with aluminium as a primary alloying element, giving it substantially higher strength than brass. Do not substitute aluminium alloys or standard brass tools for aluminium bronze non-sparking tools in classified hazardous areas — they do not meet IS 4595 requirements.
3. Beryllium Copper — Being Phased Out
Beryllium copper was historically the dominant non-sparking tool material, providing mechanical performance comparable to copper titanium. However, beryllium is classified as a Group 1 carcinogen by the International Agency for Research on Cancer (IARC) — the highest classification, indicating sufficient evidence of carcinogenicity in humans.
Occupational exposure to beryllium dust or fumes during tool machining, grinding, or heat treatment causes berylliosis, a severe and incurable chronic lung disease, and lung cancer. As a consequence of these health and regulatory risks, most major global hand tool brands have discontinued beryllium copper non-sparking tool manufacture.
In India, no domestic manufacturer produces beryllium copper tools; small quantities are imported by dealers from China. European organisations subject to REACH regulations on carcinogenic materials are progressively removing beryllium copper tools from site-approved tool lists.
Copper titanium (QTi) provides equivalent spark suppression and comparable mechanical strength to beryllium copper without the carcinogenic hazard, and is the recommended specification for organisations transitioning away from BeCu tools.
Property | Copper Titanium (QTi) | Aluminium Bronze (BronAL) | Beryllium Copper |
Hardness (HRC) | 27–35 | 18–22 | 28–35 |
IS 4595 Certified | Yes | Yes | Yes (where available) |
IS 6131 Torque Certified | Yes (first certified) | Yes | No |
Non-Magnetic | 100% (3T certified) | Partially | Yes |
IARC Carcinogen Risk | None | None | Group 1 Carcinogen |
Recommended Duty | High load, high torque, critical | General maintenance | Being phased out globally |
Manufactured in India | Yes by Pahwa MetalTech | Yes by Pahwa MetalTech | No - small imports only by Dealers |
Which Industries Require Non-Sparking Tools
Non-sparking tools are a safety requirement — not a preference — in environments classified as hazardous areas under applicable safety regulations.
The following nine major industry sectors operate environments where flammable gases, vapours, or combustible dusts are routinely present, making non-sparking tools a mandatory or regulatory-specified safety control.
Oil and Gas
Oil and gas operations span highly hazardous environments throughout the full production and distribution value chain: upstream exploration, refineries, pipeline operations, storage depots, tank farms, petroleum terminals, LPG bottling plants, and rail wagon loading and unloading. Motor spirit (petrol), high-speed diesel, LPG, LNG, and PNG all create continuous ignition risk across handling and maintenance operations.
Key tools: Wrenches, spanners, slogging spanners, hammers, adjustable wrenches, bottom valve wrenches and top valve wrenches (tank wagon operations), open valve wrenches (LPG truck operations), 16-piece OISD emergency tool kit (mandatory per OISD STD-110).
For the full industry guide and tool selection recommendations, see Non-Sparking Tools for Oil and Gas Operations
LPG Bottling Plants
LPG bottling operations handle liquefied petroleum gas in high-volume filling environments where cylinder valve operations, carousel maintenance, and filling equipment servicing are continuous activities.
The PESO (Petroleum and Explosives Safety Organisation) regulations and OISD standards govern tool requirements in bottling operations. Specialised valve wrenches for LPG cylinder valves are among the most commonly procured non-sparking tools in this sector.
Key tools: Open valve wrenches for LPG cylinder valves, spanners, hammers, adjustable wrenches, slogging spanners for flange work. The OISD 16-piece emergency tool kit is mandatory.
For the full industry guide and tool selection recommendations, see Non-Sparking Tools for LPG Bottling Plants: Complete Operations Safety Guide
City Gas Distribution
City Gas Distribution (CGD) networks across Indian cities handle pressurised natural gas across pipelines, metering stations, pressure-regulating units, and domestic and commercial connections.
Pipeline maintenance, valve operations, meter installation, leak rectification, and emergency response activities all require non-sparking tools. PNGRB safety regulations govern tool requirements in CGD operations.
Key tools: Valve wrenches, pipe wrenches, spanners, adjustable wrenches, hammers for valve seat work, cylinder keys.
Chemicals, Petrochemicals and Pharmaceuticals
Chemical and pharmaceutical manufacturing involves flammable solvents, volatile intermediates, reactive compounds, and combustible fine powders in production, storage, and material handling operations. API manufacturing, bulk chemical processing, and formulation operations all present continuous ignition risk.
Bung wrenches are among the most critical tool types in this sector — for safe opening and closing of drum barrels containing flammable liquids.
Key tools: Bung wrenches (Type A and B for different drum specifications), drum cap sealers, scrapers, spanners, hammers, chisels for crust breaking. For the complete bung wrench selection guide see Non-Sparking Bung Wrench Selection Guide
For the full industry guide and tool selection recommendations, see Non-Sparking Tools for Chemical and Pharmaceutical Industries.
Paints, Coatings and Inks
Paint, ink, and coating manufacturing involves high concentrations of volatile organic compounds (VOCs), flammable solvents, and combustible vapours at multiple stages: raw material handling, mixing, pigment processing, filling, and cleaning operations. Sampling units, mixing vessels, agitators, and filling lines all present ignition risk during routine tool use.
Key tools: Scrapers, spatulas, mixing implements, spanners for vessel maintenance, drum handling tools.
Mining and Underground Operations
Underground mining operations present among the highest non-sparking tool risk environments: methane gas (firedamp), coal dust, sulphide mineral dust, and confined spaces combine to create explosive atmospheres where spark sources cause catastrophic consequences. Drilling support, equipment maintenance, structural repairs, and confined-space operations all require certified non-sparking tools.
Key tools: Hammers, pneumatic chisels, crowbars, wrenches, vice tools, spanners. Heavy-duty copper titanium tools are specified for high-impact mining maintenance work.
Steel, Power and Heavy Engineering
Steel plants and power generation facilities handle blast furnace gases, hydrogen fuel systems, coal and coke dust, high-temperature processes, and pressurised fuel circuits. Hydrogen systems in power plants are particularly high-risk — hydrogen's low minimum ignition energy (0.017 mJ) and wide flammability range (4–75% in air) make ignition control critical for all maintenance activities.
Key tools: Wrenches, hammers, spanners, cylinder keys (hydrogen cylinder valves), pipe wrenches for gas line maintenance, chisels and crowbars for furnace maintenance.
Defence, Space and Atomic Energy
Defence and space operations involve propellants, energetic materials, explosive manufacturing, and fuel handling in extremely sensitive environments where minimal ignition energy can trigger catastrophic consequences.
Non-sparking tools for defence applications often require customisation — specialist dumbbell cutters for propellant machining, precision allen keys for assembly operations, and custom profiles for specific defence equipment.
Key tools: Dumbbell cutters, allen keys, customised precision tools for propellant handling. Pahwa MetalTech has specific expertise in manufacturing custom QTi tools for defence and atomic energy applications.
General Manufacturing with Flammable Atmospheres
Facilities handling flammable adhesives, resins, alcohols, or combustible dusts in manufacturing operations — across automotive, electronics, food processing, and packaging sectors — require non-sparking tools for maintenance of production equipment, cleaning operations, and material handling in classified zones.
The presence of any Zone 1 or Zone 2 classified area (ATEX) or Class I, Division 2 (OSHA/NEC) location triggers a non-sparking tool requirement for work in that zone.
Key tools: General wrenches, spanners, hammers, pliers, screwdrivers for maintenance of production equipment in classified zones.
Safety Standards and Compliance
Non-sparking tools are governed by safety standards across three primary regulatory frameworks. Understanding which standards apply to a given site or operation is the starting point for correct tool specification and procurement.
For sites with international operations, all three frameworks may apply simultaneously — US-based multinationals operating Indian refineries must satisfy both OSHA and OISD requirements.
IS 4595 — Indian Standard for Non-Sparking Hand Tools
IS 4595:1969 (Reaffirmed 2006) is the primary Indian standard for non-sparking hand tool materials and performance. The standard specifies: permitted alloy compositions for non-sparking materials, mechanical property minimums (hardness, tensile strength), and the spark test methodology — the definitive performance test. In the spark test, the tool is struck against a flint or grinding wheel in a darkened environment; genuine non-sparking tools produce only cold, dark oxide particles. A tool that produces visible incandescent sparks fails the test.
IS 4595 certification is the mandatory baseline for non-sparking tool procurement in India's oil, gas, chemical, mining, and defence sectors. All Pahwa MetalTech QTi and BronAL tools are certified to IS 4595.
For a complete breakdown of IS 4595 requirements see IS 4595:1969 (Reaffirmed 2006) — Complete Guide to India's Non-Sparking Tool Standard
IS 6131 — Torque Performance Standard
IS 6131 specifies the performance requirements for steel hand tools manufactured in India — it is one of the qualifying standards a steel hand tool must meet to carry the ISI mark, the BIS certification mark for Indian manufactured products. IS 6131 was written for steel tools. It is not a non-sparking tool standard.
Pahwa MetalTech has voluntarily adopted IS 6131 as the performance benchmark against which QTi Copper Titanium non-sparking tools are tested. QTi passes IS 6131 — meaning it meets the same strength, dimensional, and mechanical endurance requirements as ISI-certified steel hand tools of equivalent size. No other non-sparking tool manufacturer has adopted and demonstrated IS 6131 compliance for a copper alloy tool.
QTi can be specified for high-load, high-torque applications — valve work, flange tightening, fastener installation where torque values are defined in the work procedure — with documented evidence of steel-equivalent performance.
OISD Standards — India's Oil Industry Safety Directorate
The Oil Industry Safety Directorate (OISD) issues mandatory safety standards for India's petroleum sector. OISD STD-110 covers safety requirements for petroleum product storage and handling facilities, with specific provisions for non-sparking tool use in classified areas. The OISD 16-piece emergency tool kit (reference: KTMX-1016T) is the mandatory minimum tool set for tank farm and depot operations — every tool in the kit must be non-sparking, IS 4595 certified.
PNGRB — City Gas Distribution Safety
The Petroleum and Natural Gas Regulatory Board (PNGRB) governs safety requirements for CGD network operations across India. Non-sparking tools are mandated for pipeline maintenance, valve operation, meter installation, and emergency response in CGD infrastructure. PNGRB technical standards reference IS 4595 for tool material qualification.
ATEX Directive — European Hazardous Area Classification
The ATEX Directive (2014/34/EU) governs equipment for use in potentially explosive atmospheres across Europe. Zone classification determines tool requirements: Zone 0 (continuous explosive atmosphere), Zone 1 (intermittent), and Zone 2 (abnormal) for gas/vapour environments; Zone 20, 21, and 22 for combustible dust. Tools used in ATEX classified zones must not generate sufficient energy to ignite the classified atmosphere.
Manual non-sparking hand tools are generally outside the formal certification scope of the ATEX Directive 2014/34/EU, as they do not typically contain their own ignition source. Therefore, conventional tools such as non-sparking hammers, spanners, and wrenches are usually not ATEX-certified products.
However, these tools remain widely used and recommended in hazardous and explosive environments to help reduce ignition risks caused by impact or friction sparks.
Copper titanium and aluminium bronze tools are both suitable for ATEX zone operations; the specific zone determines whether a higher-performance material is warranted.
OSHA and NEC — United States Compliance
OSHA 29 CFR 1910.303 and the National Electrical Code (NEC) Article 500 govern hazardous location classification in North American industrial environments using a Class/Division/Zone framework.
Class I locations (flammable gases or vapours), Class II (combustible dusts), and Class III (ignitable fibres) each have Division 1 (normally hazardous) and Division 2 (abnormally hazardous) sub-classifications. Non-sparking tools are specified for Class I, Division 1 and Division 2 locations where any mechanical tool use creates a potential ignition source.
Non-Sparking Tool Types, Sizes and Applications
The non-sparking tool range covers the complete spectrum of industrial hand tools. Every tool type available in steel has an equivalent in copper alloy non-sparking format. The following categories represent the full product range available from Pahwa MetalTech in both QTi Copper Titanium and BronAL Aluminium Bronze.
Wrenches and Spanners : Open-end spanners, ring spanners, combination spanners, slogging spanners (for use with hammers), pipe wrenches, chain wrenches, and strap wrenches. Available in metric and imperial sizes. Slogging spanners are particularly critical in oil and gas operations where heavy corrosion or torque requirements demand hammer use on the spanner.
Adjustable Wrenches (Crescent Wrenches) : Available in 150mm to 600mm jaw opening sizes. Adjustable wrenches provide versatility for field maintenance but should not be used as a substitute for fixed-size spanners where torque requirements are high — the movable jaw introduces a risk of slipping under load that is greater in non-sparking alloys than in steel equivalents.
See Non-Sparking Adjustable Wrenches: Safety Limitations and When Fixed Spanners Are the Safer Choice
Hammers and Mallets : Engineers hammers (0.5kg to 3kg), sledge hammers (3kg to 6kg), dead-blow mallets, and copper-headed hammers for surface work. Hammers are among the highest-risk tool types for spark generation — the impact energy is the highest of any hand tool. QTi Copper Titanium hammers are specified for all high-energy impact operations.
Impact Sockets and Torque Wrenches : Drive sockets in 1/4", 3/8", 1/2", 3/4", and 1" drive sizes for use with non-sparking ratchet handles. QTi impact sockets are IS 6131 certified for torque performance equivalent to steel sockets — relevant for fastener installation procedures where torque values are specified.
See Non-Sparking Impact Sockets and Torque Wrenches: Selection and Safety Guide
Bung Wrenches : Specialised tools for opening and closing drum barrel bungs (plugs) containing flammable or hazardous liquids. Type A bung wrenches and Type B bung wrenches serve different bung profiles across standard 200L and 210L drums. Bung wrenches are among the most critical non-sparking tool types in the chemicals, pharmaceutical, and paint sectors where drum handling is a constant maintenance task.
See Non-Sparking Bung Wrench Selection Guide for Chemical Drums and Barrels
Drum Cap Sealers : Non-sparking drum cap sealers for sealing screw-top and lever-lock drum closures on flammable chemical barrels. Used in conjunction with bung wrenches in chemical and pharmaceutical drum handling operations.
See Non-Sparking Drum Cap Sealers: Safety Tool Guide for Flammable Chemical Barrels
Chisels and Punches : Non-sparking flat chisels, cold chisels, pin punches, and centre punches for struck work on metal surfaces in classified areas. Chisels must always be paired with a non-sparking hammer — using a steel hammer on a non-sparking chisel creates a steel-on-chisel impact zone that produces steel sparks.
Crowbars and Pry Bars : Heavy-duty non-sparking crowbars for equipment positioning, panel removal, and leverage work in classified areas. Available in 600mm to 1500mm lengths in QTi Copper Titanium for heavy industrial maintenance.
Pliers and Cutters : Combination pliers, long-nose pliers, cutting pliers, and wire cutters in non-sparking alloys for electrical and general maintenance in classified zones.
Screwdrivers : Flathead and Phillips screwdrivers in non-sparking alloys for instrument, panel, and equipment maintenance in hazardous areas. Non-sparking screwdrivers are specified where panel access in classified zones could expose the screwdriver blade to a flammable atmosphere.
Cylinder Keys : Specialised non-sparking cylinder keys for opening and closing valve gland nuts on gas cylinders — hydrogen, oxygen, LPG, and specialist industrial gas cylinders. Critical in steel mills, power plants, and any site handling pressurised gas cylinders in classified areas.
Specialist and Custom Tools : Pahwa MetalTech manufactures specialist non-sparking tools to customer specification, including: dumbbell cutters for propellant machining in defence applications, bottom valve wrenches and top valve wrenches for rail wagon petroleum loading operations, open valve wrenches for LPG tank truck operations, and custom tool profiles for specific equipment requirements.

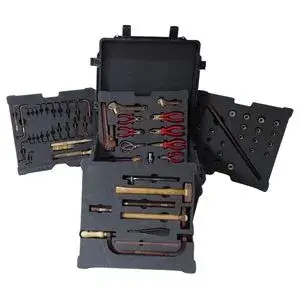

Tool Kits : Pre-configured non-sparking tool kits for specific operational standards: the OISD 16-piece emergency tool kit (KTMX-1016T) is the mandatory kit specification for Indian petroleum sector operations under OISD STD-110, containing IS 4595 certified tools for tank farm and depot maintenance.
Do's and Don'ts: Safe Use of Non-Sparking Tools
DO | DON'T |
Inspect every non-sparking tool before use in a classified area — check for cracks, deformation, or damaged surfaces | Do not use a damaged non-sparking tool. A cracked or deformed tool generates unpredictable impact behaviour |
Use the correct size tool for the fastener or fitting. An undersized wrench slips under load and can generate impact energy at the contact zone | Do not use steel tools as substitutes in classified areas — ever. Even briefly using a steel wrench while 'the non-sparking wrench is being fetched' creates a real ignition risk |
Use QTi Copper Titanium tools for high-torque operations, repetitive impact work, and any application where tool failure under load creates a secondary hazard | Do not grind non-sparking tools. Grinding copper alloy tools generates fine particles and heat — it also removes the certified surface condition. A ground tool is no longer IS 4595 certified |
Store non-sparking tools separately from steel tools to prevent contamination and confusion at point of use | Do not use aluminium bronze as a steel tool equivalent in high-torque operations — its lower hardness means it can fail under the same loads that steel tools routinely carry |
Verify IS 4595 certification documentation before accepting non-sparking tools for site use. Request the test certificate from the manufacturer | Do not assume all 'copper-coloured' tools are non-sparking. Brass, bronze hardware, and decorative copper items do not meet IS 4595 — they are not certified non-sparking tools |
Use the correct non-sparking hammer with chisels and punches. A steel hammer striking a non-sparking chisel produces steel sparks at the hammer-chisel interface | Do not use a non-sparking tool that has been repaired by welding or brazing — the repair zone may not meet the original material specification |
Maintenance, Inspection and Storage
Non-sparking tools require specific maintenance practices that differ from steel tools. Copper alloys are softer than steel and more susceptible to surface damage from abrasion, incorrect storage, and inappropriate repair. Maintaining the certified surface condition is essential to maintaining IS 4595 compliance.
Pre-Use Inspection
Before each use in a classified area, inspect for: surface cracks or fractures (reject the tool — do not use), deformation of the working face or jaw (reject), evidence of steel contamination on the working surfaces (iron deposits can transfer from previous contact with steel components — clean with a non-ferrous wire brush before use), and correct labelling (IS 4595 marking should be visible on the tool body).
Cleaning
Clean non-sparking tools with a soft cloth or non-ferrous wire brush and a mild solvent. Avoid steel wire brushes — they deposit ferrous particles on the tool surface that can create ignition risk. Do not use abrasive cleaning methods or power tools. For tools used in chemical environments, clean immediately after use with a solvent appropriate for the process chemicals the tool has contacted.
Storage
Store non-sparking tools in a dedicated tool bag, roll, or cabinet separate from steel tools. Physical separation prevents surface contamination (ferrous particles transferring from steel tool surfaces to copper alloy surfaces) and prevents identification confusion at point of use — the moment of tool selection is a safety-critical decision. Label storage locations clearly. For site operations, a dedicated non-sparking tool kit (such as the OISD 16-piece configuration) in a marked carry case is the recommended storage format.
When to Retire a Tool
Retire and replace a non-sparking tool when: any crack or fracture is visible in the tool body; the working face (wrench jaw, hammer face, chisel edge) is deformed beyond the manufacturer's tolerance; the tool has been subjected to excessive load that may have caused internal damage not visible on the surface; or when the IS 4595 identification marking is no longer legible. Do not attempt to repair or reshape non-sparking tools by grinding, welding, or heat treatment — the repaired tool is no longer certified.
Buying Guide: How to Specify and Procure Non-Sparking Tools
Procurement of non-sparking tools for industrial use involves more verification than standard hand tool procurement. The safety-critical nature of the application means that accepting uncertified or incorrectly specified tools creates a direct liability for the HSE team. The following guidance covers the key verification steps and procurement channels.
What to Verify Before Accepting a Supplier
Verification Item | What to Check | Why It Matters |
IS 4595 test certificate | Request the actual test certificate — not just a declaration. Certificate should be from an accredited laboratory, reference the specific alloy tested, and include the spark test result. | IS 4595 certification is the baseline safety requirement. A declaration is not a certificate. |
IS 6131 torque certification | For high-torque applications, request IS 6131 certificate showing torque performance data. | Ensures the non-sparking tool can carry the required torque without failure. |
Material composition certificate | Request the chemical composition certificate for the alloy batch — confirms the tool is actually manufactured from the specified alloy. | Prevents substitution of uncertified alloys. |
Manufacturer credentials | Confirm the manufacturer operates a documented quality management system. Pahwa MetalTech is ISO 9001:2015 certified. | Ensures consistent manufacturing quality and traceability. |
Government and PSU Procurement — GeM Portal
Pahwa MetalTech's QTi Copper Titanium and BronAL Aluminium Bronze non-sparking tools are listed on the Government e-Marketplace (GeM), India's official public procurement portal for government departments, PSUs, and defence establishments. GeM procurement offers price transparency, verified seller credentials, and compliance with government procurement policies including MSE preference provisions.
Red Flags for Non-Genuine Tools
The non-sparking tool market includes tools marketed as IS 4595 certified that have not been tested to the standard. Red flags when evaluating a supplier include: inability to provide an actual test certificate (offering only a declaration or generic brochure statement), significantly lower prices than certified manufacturers (certified testing, quality copper alloys, and manufacturing in compliance with IS 4595 cannot be achieved at commodity tool prices), tools with IS 4595 markings applied as adhesive labels rather than stamped identifications, and suppliers unwilling to provide material composition certificates.
International Procurement
Pahwa MetalTech supplies non-sparking tools to buyers in more than 30 countries across the USA, European nations, South-East Asia, the Middle East, and Africa. For international buyers, all products are accompanied by full certification documentation including IS 4595 test certificates, material composition certificates, and IS 6131 torque certificates where applicable. EN 10204 Type 3.1 material certificates are available for European procurement.
Source Non-Sparking Tools from Pahwa MetalTech
Pahwa MetalTech manufactures QTi Copper Titanium and BronAL Aluminium Bronze non-sparking hand tools, IS 4595 and IS 6131 certified, for buyers across oil and gas, mining, chemicals, LPG, defence, and general engineering sectors globally.
Complete range: wrenches, spanners, hammers, sockets, bung wrenches, drum cap sealers, chisels, crowbars, cylinder keys, and specialist tools. Download our Catalog for standard products and custom tool design available. ISO 9001:2015 certified manufacturer, Chakan, Pune, India.
