Non-Sparking Tools for Oil and Gas Operations: Standards, Applications and Best Practices

TL;DR — Key Takeaways

• Steel tools produce sparks at 1,200–1,600°C — above the ignition temperature of petrol vapour (246°C), LPG (450°C), and natural gas (537°C)




• Non-sparking tools in Copper Titanium (QTi) or Aluminium Bronze (BronAL) are mandatory in Zone 0, Zone 1, and Zone 2 classified areas across all oil and gas operations




• Key Indian standards: IS 4595, OISD-STD-113, 117, 118, 144, 226, PESO, PNGRB. Non-sparking tools are not ATEX certified — ATEX does not apply to passive hand tools




• Copper Titanium (QTi) is recommended for heavy-duty, high-torque, offshore, and railway wagon valve operations. Aluminium Bronze (BronAL) for light to medium general maintenance




• PSU buyers — IOCL, BPCL, HPCL, ONGC, GAIL — can procure IS 4595-certified QTi and BronAL non-sparking tools through the Government e-Marketplace (GeM)

The oil and gas industry operates with a constant occupational reality: wherever hydrocarbons are present, two sides of the fire triangle are already met. Crude oil, natural gas, LPG, petrol vapour, and diesel vapour are flammable at every stage of the value chain — at the wellhead, on the refinery floor, at the depot loading arm, and beneath a railway tank wagon during unloading. What is typically absent is only the ignition source.

That is where non-sparking tools for oil and gas operations play a directly preventable role — eliminating one specific, controllable ignition source from the most routine maintenance and operational tasks. The science behind why copper alloys prevent ignition while steel causes it is covered in the Ultimate Guide to Non-Sparking Tools.

Why Oil and Gas Operations Cannot Use Steel Tools

Two elements of the fire triangle — fuel and oxygen — are almost always simultaneously present in oil and gas facilities. Ambient air provides the oxygen. The hydrocarbon provides the fuel. The only controllable variable is the ignition source.

Steel hand tools generate frictional sparks when struck against metal surfaces, concrete, or stone — fragments of superheated steel with surface temperatures between 1,200°C and 1,600°C. Even routine actions — tightening a flange bolt, striking a slogging spanner, opening a valve — can produce a spark of this temperature.

For a deeper understanding of the principles behind spark prevention and ignition hazards, refer to our article, Non-Sparking Tools and the Fire Triangle: The Science Behind Spark Prevention.

The minimum ignition temperatures of hydrocarbons handled across the oil and gas value chain are significantly lower:

Substance	Minimum Ignition Temperature
Crude Oil Vapour	170–300°C (varies by grade)
Diesel Vapour	210–220°C
Petrol Vapour	246–280°C
LPG (Propane / Butane)	450°C
Natural Gas (Methane)	537°C
Hydrogen	571°C

A steel tool producing a 1,400°C spark in an environment where petrol vapour ignites at 246°C requires no further explanation for why steel tools are prohibited in classified hazardous areas.

Copper-based alloys — Copper Titanium and Aluminium Bronze — produce cold sparks. The high thermal conductivity of copper dissipates impact energy rapidly into the tool body rather than concentrating it in the ejected particle. Cold sparks from copper alloys typically break off below 300°C — below the minimum ignition temperature of virtually every industrial hydrocarbon. This is the physical basis for non-sparking tool specifications across the oil and gas industry.

Hazardous Area Classification and What It Means for Tool Selection

Before selecting non-sparking tools for any oil and gas facility, HSE managers and safety engineers work from the facility's hazardous area classification. In India, IEC 60079-10-1 and its Indian equivalent IS 5571 define the classification system. OISD-STD-113 provides the framework specifically for hazardous area classification at hydrocarbon processing and handling facilities.

Zone 0: A flammable atmosphere is present continuously or for long periods — typically inside tanks, vessels, and enclosed process equipment. Mechanical work in Zone 0 is generally restricted to hot work permit procedures.

Zone 1: A flammable atmosphere is likely to occur during normal operation — around valve glands, pump seals, flange connections, and vents in active process areas. This is the zone where most routine maintenance with non-sparking tools takes place.

Zone 2: A flammable atmosphere is unlikely during normal operation but may be present for short periods — in open areas adjacent to Zone 1, around bunded storage, or near equipment that could release vapour under fault conditions.

Non-sparking tools are mandatory in Zone 0 and Zone 1 work. Zone classification maps maintained by facility HSE teams are the starting reference for every tool procurement specification. Purchase orders from IOCL, BPCL, HPCL, ONGC, and GAIL facilities routinely reference zone classification to define the required tool standard.

Standards and Regulations Mandating Non-Sparking Tools in Oil and Gas

India

IS 4595:1969 (reaffirmed 2006) is the Bureau of Indian Standards specification that defines certified non-sparking tool alloy compositions, the test method, and the documentation required. IS 4595 certification is the primary compliance reference for all Indian oil and gas procurement. The certificate carries a BIS number that can be independently verified.

For a complete breakdown of testing procedures, material requirements, hardness specifications, spark testing methodology, and compliance requirements, refer to our detailed guide: IS 4595:1969 (Reaffirmed 2006) — Complete Guide to India's Non-Sparking Tool Standard.

OISD-STD-113 establishes the hazardous area classification framework for petroleum installations across India. It defines the zone classification that underpins all ignition source control requirements, including non-sparking hand tools in classified areas.

OISD-STD-117 covers fire protection facilities for petroleum depots and terminals — the primary standard for downstream fuel storage and distribution.

OISD-STD-118 sets safety requirements for LPG installations including gantry operations.

OISD-STD-144 covers safety guidelines for LPG bottling plants and cylinder filling operations.

OISD-STD-226 covers operation and maintenance of City Gas Distribution (CGD) networks. Section 8.3(b) specifies that all naked flames and sources of ignition shall not be permitted in the immediate work area during maintenance — establishing the requirement for non-sparking tools across all CGD infrastructure maintenance activities.

OISD-GDN-182 and OISD-GDN-193 cover workover and well stimulation operations and gas lift installations. These guidelines reference non-sparking tools for mechanical work on injection gas lines and well equipment.

A note on terminology in some Indian oil and gas documentation. Older OISD guidelines and legacy facility safety procedures occasionally reference "brass" tools for certain operations. For compliance purposes, the correct specification is IS 4595-certified non-sparking tools in Copper Titanium or Aluminium Bronze — the standard that formally defines and certifies non-sparking performance for industrial hand tools. Where older documentation references brass, IS 4595 certification is the current and correct requirement.

PESO (Petroleum and Explosives Safety Organisation) regulates petroleum storage, handling, and transportation under the Petroleum Rules, 2002 and SMPV Rules, 2016. PESO field inspections at petroleum storage and handling facilities routinely verify the use of certified non-sparking tools in classified areas.

PNGRB (Petroleum and Natural Gas Regulatory Board) regulates pipeline and city gas distribution infrastructure. PNGRB Technical Standards for CGD Networks (2008) establish ignition source control as a core safety requirement across gas distribution systems.

International Standards

OSHA 29 CFR 1910.242(a) requires employers to ensure safe use of hand and portable tools in hazardous workplaces. OSHA guidance for explosive atmosphere environments recommends spark-resistant tools for maintenance where flammable vapours or combustible dusts are present.

NFPA 30 (Flammable and Combustible Liquids Code) and NFPA 77 (Recommended Practice on Static Electricity) both reference non-sparking tools to minimise mechanical ignition hazards during petroleum facility maintenance and inspection.

A clarification on ATEX. ATEX is a European Union directive that applies to equipment with its own potential ignition source — primarily electrical and powered mechanical equipment. Non-sparking hand tools are passive mechanical tools with no internal ignition source and do not fall within the ATEX equipment directive scope.

Non-sparking tools cannot be ATEX certified. Any supplier claiming ATEX certification for a non-sparking hand tool is making a claim not supported by the directive. The applicable compliance frameworks are IS 4595 (India), OSHA and NFPA (US), and EN 13463-1 (Europe).

Choosing the Right Non-Sparking Alloy for Oil and Gas Applications

Copper Titanium — QTi

Copper Titanium is the modern high-performance non-sparking alloy, commercially manufactured under the QTi brand exclusively by Pahwa MetalTech — the only manufacturer of Copper Titanium non-sparking tools globally. With a Rockwell C hardness of 26–32 HRC, QTi tools provide substantially better wear resistance and longer service life than Aluminium Bronze. They handle heavier loads without deforming, making them the preferred alloy for heavy flanging, slogging operations, pipeline valve maintenance, and confined space work.

Copper Titanium is also completely non-magnetic — a property that matters for offshore platform maintenance near sensitive magnetic instrumentation, subsea operations, and naval and defence applications. It is beryllium-free, with no occupational health concerns in manufacture, field use, or disposal. See the complete Copper Titanium tools range across all standard tool types.

Aluminium Bronze — BronAL

Aluminium Bronze (approximately 77% Cu, 9–12% Al, 5% Ni, 5% Fe) is the widely used entry-level non-sparking alloy. With a Rockwell C hardness of 20–27 HRC, it is suitable for light to medium maintenance tasks — routine spanners, screwdrivers, pliers, and general-purpose tools. It is economical and reliable for standard facility maintenance.

Aluminium Bronze contains iron and nickel, making it not suitable for applications where magnetic interference with instrumentation is a compliance requirement. Pahwa MetalTech's Aluminium Bronze tools are available across the full range of hand tool types.

Beryllium Copper

Beryllium copper was historically used in high-performance non-sparking applications but is now being phased out by most responsible procurement specifications. Health risks span manufacturing dust (Chronic Beryllium Disease — IARC Group 1 carcinogen), user-side inhalation risk during field grinding, chemical exposure in acid environments, and hazardous waste obligations for disposal. Pahwa MetalTech does not manufacture beryllium copper tools.

Non-Sparking Tools Across the Oil and Gas Value Chain

Exploration, Drilling and Upstream Production

Drilling rigs, wellheads, and production platforms operate in environments where hydrocarbon gas is routinely present. Maintenance crews servicing wellheads, blowout preventers (BOPs), and production equipment use non-sparking tools to prevent ignition during assembly, inspection, and emergency response. OISD-GDN-182 and GDN-193 establish specific requirements for well stimulation, workover, and gas lift operations — the most critical upstream activities for non-sparking tool use.

Marine Tankers and Loading Terminals

Large tankers transporting crude oil, LNG, LPG, and refined products operate in conditions where vapour accumulation during loading and unloading is continuous. Connecting marine loading arms, opening manifold valves, and tightening pipeline couplings all require spark-resistant tools. The confined deck spaces and persistent vapour presence at marine loading terminals make non-sparking compliance a standard condition of safe operation globally.

Refineries and Petrochemical Plants

Refineries are among the largest per-site consumers of non-sparking tools. Turnaround shutdowns — planned maintenance periods where process units are systematically overhauled — involve thousands of flange connections, pump seals, heat exchanger bundles, and compressor components in areas where residual hydrocarbons are present.

Impact sockets, slogging spanners, and hammers in Copper Titanium are the standard specification for heavy refinery shutdown maintenance. Daily operational maintenance of valves, instrumentation, and process equipment follows the same non-sparking requirement throughout classified areas.

Pipelines and Compressor Stations

Pipeline maintenance involves valve stations, pig traps, pressure regulators, and compressor units along cross-country routes. Non-sparking spanners and wrenches are used for valve servicing, flange maintenance, and instrument connections.

Compressor station maintenance — where natural gas is continuously present — is a particularly high-risk category for spark ignition from conventional steel tools.

Petroleum Depots and Terminals — Railway Wagon Unloading

Petroleum depots receive bulk fuel through pipelines and railway tank wagons and distribute to tanker trucks. Railway wagon unloading operations are among the most operationally demanding non-sparking tool applications in the downstream oil and gas sector.

Two valve positions on each railway tank wagon require direct tool engagement during every unloading cycle:

The bottom discharge valve, located beneath the wagon, is opened and closed using an Audco Bottom Valve Wrench (BVW). This operation is performed in confined space under the wagon, with limited clearance and direct fuel vapour exposure. The Audco BVW features a 12-point head to engage the valve plug and a long handle optimised for the confined operating position.

The top dome valve — the master valve controlling product flow — is operated using a Master Top Valve Wrench. Particularly critical when the valve handwheel is missing or damaged, its deep socket design and T-handle allow the operator to engage the master valve from a standing position on top of the wagon. A lanyard hole is also fitted to prevent the tool dropping from height.

At kerbside storage valve stations within the depot, Audco Star Valve Wrenches — designed specifically for AUDCO/L&T plug valves — are used across the full valve size range. Available from 19mm to 59mm to cover all standard AUDCO/L&T valve configurations.

Copper Titanium (QTi) is the recommended alloy for all three valve wrench types. The confined operating environment, impact loads, and the consequences of tool deformation in a live unloading operation make the higher hardness and durability of QTi the correct specification.

Beyond operational tools, OISD-STD-117 mandates a 16-piece non-sparking emergency tool kit at every petroleum depot, pipeline installation, and lube oil installation covered by the standard. This kit — comprising the 16 most commonly used non-sparking tools in a secured hard case — is a minimum facility compliance requirement, separate from the routine operational tool inventory. Pahwa MetalTech's OISD Emergency Tool Kit — 16 Piece is manufactured specifically to this specification and is available for immediate procurement, including through GeM for PSU buyers.

The importance of non-sparking tools in fuel-handling operations is illustrated by a documented fire incident at a petroleum depot railway siding, where tool use in a live hydrocarbon vapour zone during wagon unloading contributed to ignition.

The incident is examined in detail in Non-Sparking Tools for Depots, Terminals and Aviation Fuelling Stations and remains a widely referenced case study in Indian petroleum depot safety training. OISD-STD-117 is the principal safety standard governing petroleum depots and terminals in India.

LPG Bottling Plants

LPG bottling plants fill cylinders for domestic and commercial distribution and load bulk LPG tank trucks. The filling hall, carousel operations, and bulk loading gantries are all classified hazardous areas. Coupling LPG loading lines, operating manifold valves, and servicing cylinder filling equipment all require IS 4595-certified non-sparking tools. OISD-STD-118 and OISD-STD-144 are the applicable regulatory standards.

Last-Mile Fuel Delivery

Tanker truck drivers and terminal operators routinely work with valve connections, hose couplings, and manhole covers at petroleum loading terminals and petrol station tank installations. These operations in the presence of petrol and diesel vapour require non-sparking tools for all mechanical connections and valve operations during loading and unloading.

City Gas Distribution Networks

CGD networks deliver piped natural gas through underground distribution systems. Maintenance of pressure regulators, valves, service connections, and emergency shut-off systems requires ignition source control throughout the network. OISD-STD-226 specifically mandates the elimination of ignition sources from CGD maintenance work areas. Spanners, hammers, digging tools, and valve keys used by CGD maintenance crews should all be IS 4595-certified non-sparking tools.

Commonly Used Non-Sparking Tools in Oil and Gas Operations

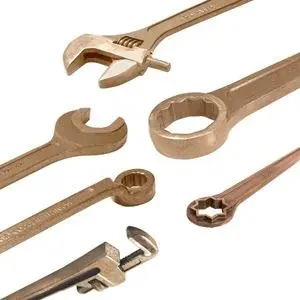

Non-Sparking Spanners and Wrenches

Open-end spanners, ring spanners, combination spanners, and adjustable wrenches in Copper Titanium or Aluminium Bronze cover the majority of valve, flange, and equipment fastener work across the oil and gas value chain. Available in full metric and imperial size ranges for equipment across all facility types and origins.

Slogging Spanners

Heavy-duty, thick-walled slogging spanners are designed to be struck with a hammer to generate high torque on large pipeline flanges, pressure vessel covers, and industrial equipment fasteners in refineries, pipeline stations, and process plants. Used in combination with non-sparking hammers for maximum torque transfer without spark generation.

Impact Sockets

Non-sparking impact sockets used with pneumatic and hydraulic torque tools cover the high-volume, high-torque flange bolt work of planned refinery and petrochemical plant turnaround maintenance — one of the most intensive non-sparking tool use environments in the oil and gas industry.

Hammers and Mallets

Non-sparking hammers and dead-blow mallets are used with slogging spanners and for direct impact applications in classified areas. Available in a range of weights and head configurations for different oil and gas maintenance tasks.

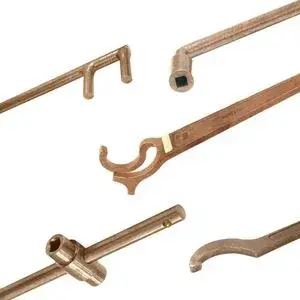

Audco Valve Wrenches — Bottom Valve, Master Top Valve and Star Valve

These three tools address the specific requirements of railway wagon unloading operations and petroleum depot valve infrastructure:

Audco Bottom Valve Wrench (BVW): For under-wagon confined space operation on bottom discharge valves. 12-point head, long handle for confined operating position, lanyard hole for tethering. QTi Copper Titanium recommended for durability and impact resistance.

Master Top Valve Wrench: For dome and master valve operation on railway wagon tops. Deep socket, T-handle, lanyard hole. Critical when the valve handwheel is absent or damaged. QTi recommended.

Audco Star Valve Wrench: For AUDCO/L&T plug valves at kerbside storage and distribution valve stations. Available 19mm–59mm. 12-point head for flexibility in restricted access positions.

All three tools are manufactured by Pahwa MetalTech in QTi Copper Titanium alloy and are specifically designed to meet the safety requirements of petroleum depots, fuel terminals, and railway siding operations where ignition hazards must be carefully controlled. Full specifications, application details, and the petroleum depot case study that underscores the importance of non-sparking tools are available in Non-Sparking Tools for Depots, Terminals and Aviation Fuelling Stations.

Non-Sparking Digging Tools

Non-sparking shovels, spades, pickaxes, and scrapers are used during pipeline excavation and emergency repair work. Excavation near buried oil and gas pipelines can release trapped hydrocarbons, creating a transient flammable atmosphere at the exact point of mechanical work. Digging tools are among the most frequently overlooked non-sparking requirements in pipeline and CGD maintenance specifications.

How to Select and Procure Non-Sparking Tools for Oil and Gas Facilities

Establish Zone Classification of the Work Area First

Every procurement specification should begin with the hazardous area classification map for the facility. Zone 0, Zone 1, and Zone 2 classifications determine which work areas require non-sparking tools and inform the performance level required from those tools.

Identify Metric or Imperial Fastener Standards

Oil and gas equipment from different countries and eras follows metric or imperial fastener standards — or both across the same installation. A complete tool inventory should cover both systems across the size ranges fitted to the specific equipment being maintained.

Select Alloy Based on Application

Use the application-based selection table in the alloy section above. Heavy-duty, high-torque, offshore, non-magnetic, or confined space applications specify Copper Titanium (QTi). Light to medium general maintenance applications can use Aluminium Bronze (BronAL).

Verify IS 4595 Certification Before Purchase

Request the IS 4595 test certificate with BIS certificate number, alloy composition report, test date, and testing laboratory for every tool order. The BIS number is independently verifiable. Reject documentation claiming IS 4595 conformance without a traceable certificate number.

For answers to the most common questions on non-sparking tool certification, standards, alloy selection, testing, inspection, maintenance, and procurement, refer to Non-Sparking Tools: 31 Most Frequently Asked Questions Answered

PSU Oil and Gas Buyers — Procurement via GeM

For public sector oil and gas organisations such as IOCL, BPCL, HPCL, ONGC, GAIL, and OIL India, procurement through the Government e-Marketplace (GeM) is the prescribed procurement route.

Pahwa MetalTech's QTi Copper Titanium and BronAL Aluminium Bronze non-sparking tools are available on GeM for direct procurement. Complete product listings, procurement guidance, and direct purchase links are provided in Non-Sparking Tools on GeM Marketplace: Complete Product Catalogue with Direct Purchase Links.

Review Manufacturer Catalogues and Request a Technical Quotation

Review the manufacturer's catalogue to confirm available sizes, configurations, and tool types. For facilities with non-standard valve configurations, mixed metric and imperial requirements, or dedicated tool kits for railway wagon depot operations, discuss custom manufacturing requirements directly with the manufacturer before finalising the purchase specification.
