Dimensions, Weights & Tolerances in Investment Casting
Pahwa MetalTech is a trusted investment casting manufacturer in India, producing precision lost wax castings with controlled dimensions, weights, and tolerances for demanding industrial applications requiring consistent quality and dimensional accuracy.
Understanding Dimensions, Weights & Tolerances in Investment Casting
At Pahwa MetalTech, precision plays a central role in delivering high-quality investment castings for demanding industrial applications. The focus is on producing components that meet defined dimensional, weight, and tolerance requirements across complex geometries.
Advanced investment casting processes enable the production of intricate parts with consistent dimensional control and repeatability. This supports applications where component fit, alignment, and performance are critical to the overall assembly.
Accurate control over dimensions, weights, and tolerances helps reduce the need for extensive post-casting machining. This contributes to improved efficiency, lower production costs, and reliable performance in end-use applications.
Investment Casting Dimensions and Wall Thickness Capabilities
The investment casting process supports a wide range of component sizes, from small precision parts to larger, structurally robust castings. This flexibility allows manufacturers to address varied design and application requirements across industries.
Typical size capabilities include components as small as 5 x 5 x 5 mm and up to 500 x 500 x 1000 mm, depending on alloy and geometry. Maintaining dimensional accuracy across this range ensures compatibility with assemblies and reduces downstream processing.

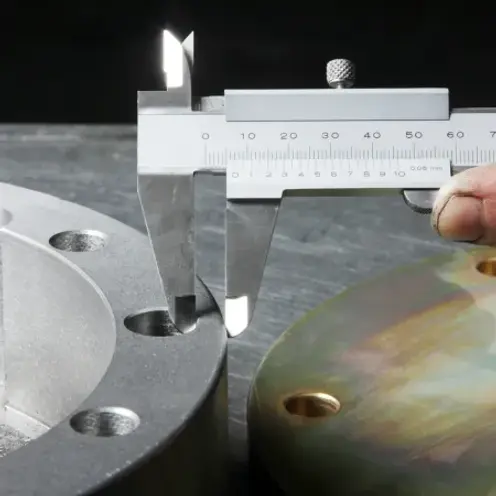

Wall thickness control is equally important for structural integrity and casting performance. Minimum wall thickness can typically range between 0.8 mm to 1.5 mm, depending on alloy selection, geometry, and process conditions.

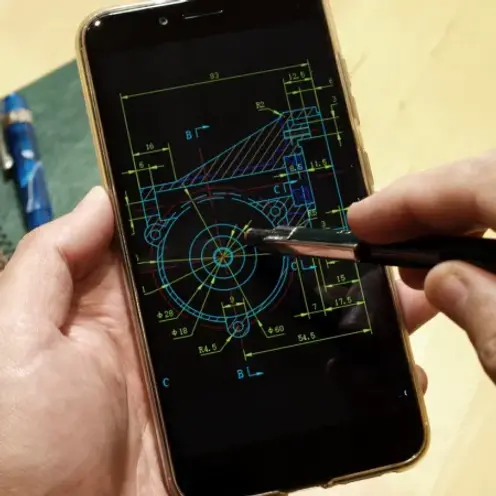

Dimensional Tolerances in Investment Casting
Tight casting tolerances are essential for reducing machining requirements and ensuring components meet functional specifications. Precision in the casting stage helps improve consistency and reduces the risk of rework or assembly issues.
Investment casting processes can typically achieve tolerances in the range of ±1.5% of the nominal dimension, depending on part size and complexity. These tolerances are guided by internationally recognized standards such as VDG P690 and ISO 8062.
For applications requiring tighter tolerances, secondary operations such as CNC machining, grinding, or finishing can be applied. These processes further enhance dimensional accuracy while maintaining the benefits of near-net-shape casting.
Weight Range in Investment Castings: Light to Heavy Components
Investment casting supports a wide range of component weights, enabling the production of both lightweight precision parts and heavier structural components. This flexibility is important for applications where weight optimization and performance are key considerations.
Typical casting weight capabilities range from as low as 2 grams to as high as 40 kilograms, depending on alloy, geometry, and process parameters. This range allows manufacturers to address diverse application requirements across industries.
Maintaining consistency across varying weights ensures that each component meets strength, durability, and performance expectations. This versatility supports applications requiring both intricate lightweight parts and robust, load-bearing components.
